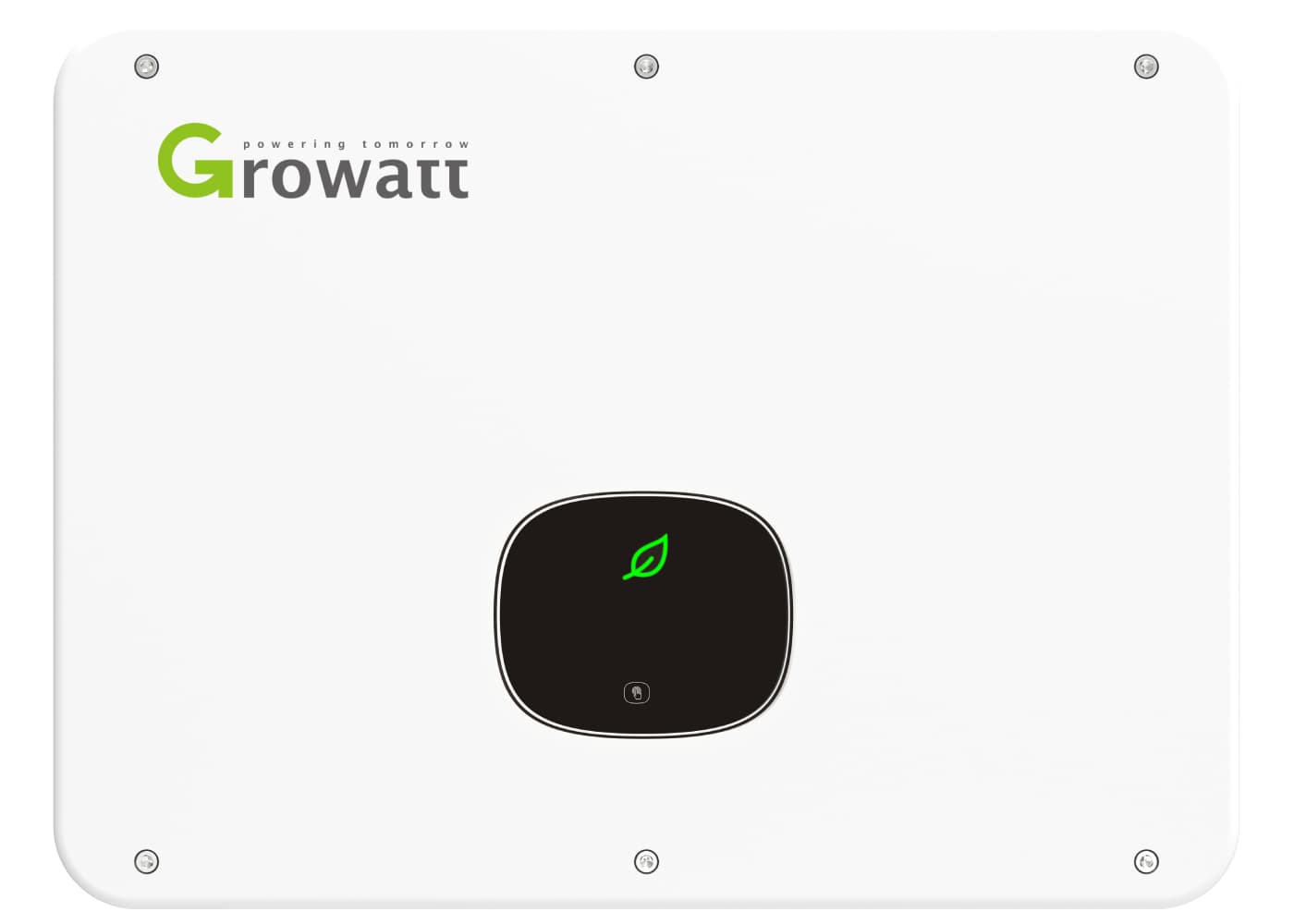

The Growatt MID 40KTL3-X inverter is part of the MID series, a range of three-phase Growatt inverters with a lighter and more compact design than their predecessors.

Growatt MID 40KTL3-X 40 kW

The Growatt MID 40KTL3-X 40 kW inverter has a maximum output power of 40,000W. This device is compatible with installations of up to a maximum size of 60 kWp. The maximum efficiency of the inverter is measured at the maximum yield and is 98.5%. This efficiency applies to average weather conditions in Europe.

Features of the MID 40KTL3-X

The maximum performance of the MID 40KTL3-X is supported by 3 MPP trackers. The inverter is supplied without a smart meter and can be used for self-consumption or as a grid feeder.

Safety

To ensure the safety of the installation, the Growatt MID 40KTL3-X is equipped with the following built-in protective measures:

• DC switch
• DC and AC surge protection, type 2
• AFCI protection
• Protection class 66

This inverter communicates with other devices in the network through the following interfaces:

• RS485
• USB
• WiFi (optional)
• GPRS (optional)
• LAN (optional)
