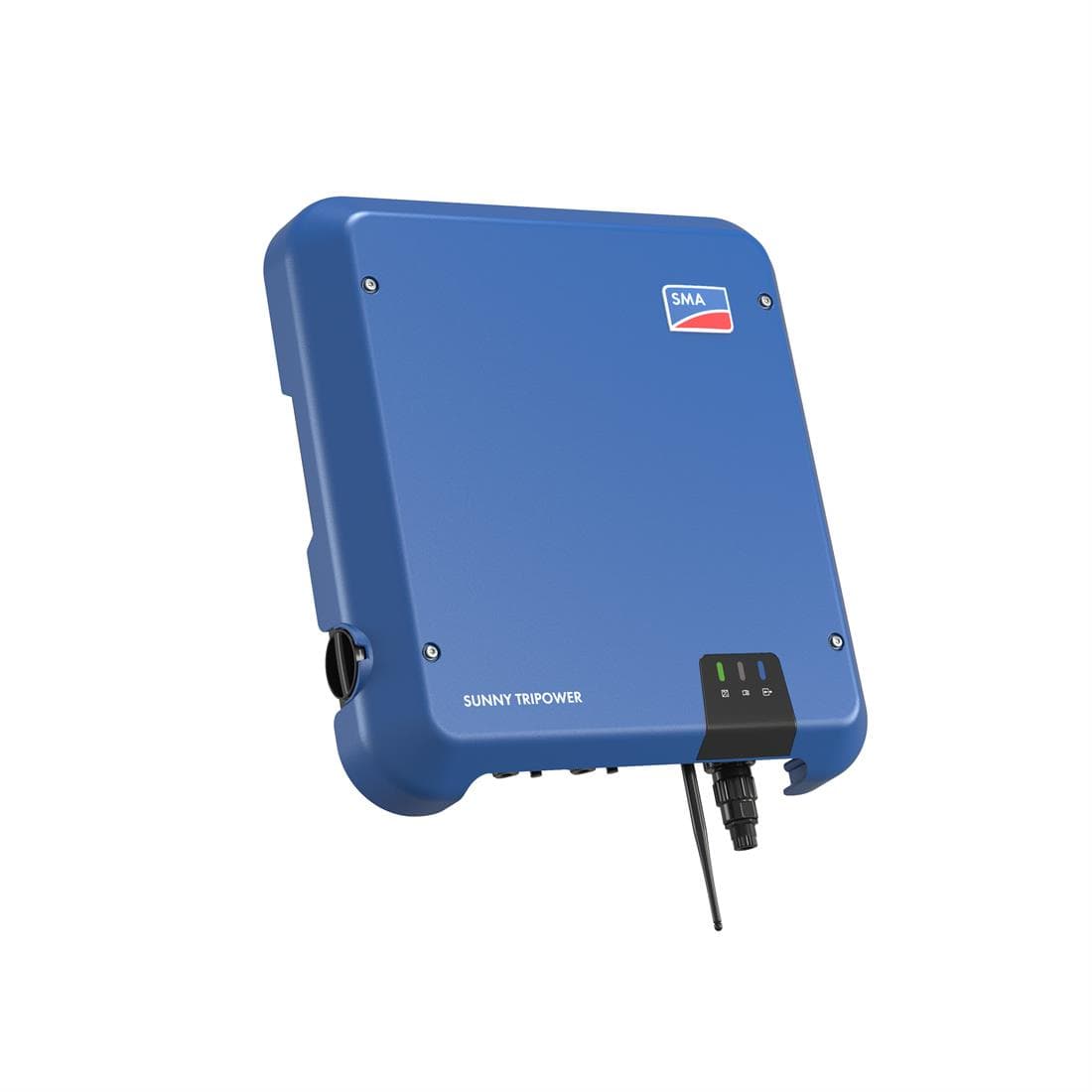

SMA Sunny Tripower 4.0

Art.No.: STP4.0-3AV-40

SMA Sunny Tripower 4.0

Art.No.: STP4.0-3AV-40
Product information
Description

The Sunny Tripower 4.0 is a small, lightweight three-phase inverter and easy to install. Shadefix, shadow management, and SMA Smart Connected are standard features of these inverters. In addition, there is a possibility to expand with TS4-R optimizers through integrated TS4-R communication.

Easy & quick installation

With only 17kg, this inverter is very light. This makes it easy to handle and install, so only one mechanic has to work. The housing does not need to be opened. This is because all the necessary connections are at the bottom and can be connected to both Ethernet and Wi-Fi. So you can immediately connect a suitable device to complete the installation.

Shadefix

Shadefix, as OptiTrac Global Peak was formerly called, ensures that the Sunny Tripower 4.0 still performs optimally in light shading conditions. Normally, solar cells covered with shadow will perform less and therefore reduce the performance of the entire module. Shadefix ensures that shadow-covered solar cells are avoided and the rest of the panel can still perform optimally.

SMA Smart Connected

SMA offers a free and automatic system to monitor inverters. As soon as an anomaly is detected, both the customer and installer will be informed immediately and an adequate response can be given. If an inverter needs to be replaced, SMA will supply a new one within 1 to 3 days.

Extension TS4-R optimizers

The inverter contains an integrated TS4-R communication option. This allows the system to be expanded with TS4-R optimizers. For example, when the installation is more complex or there is more shading, TS4-R optimizers can be placed selectively. This way, the Sunny Tripower 4.0 will generate higher yields.

See all SMA inverters.

ESTG is a wholesaler of solar inverters and other sustainable electrical products, such as EV chargers, solar batteries and thermal heating. With a wide range of A-brands, ESTG supplies installers across Europe.

Specifications
Brand
SMA
Manufactor
SMA
Net Height
470 mm
Net Length
176 mm
Net Weight
17 kg
Net Width
435 mm
Origin
Germany
Ingress Protection
IP65
Number of phases
3 phase
Warranty in Years
5
